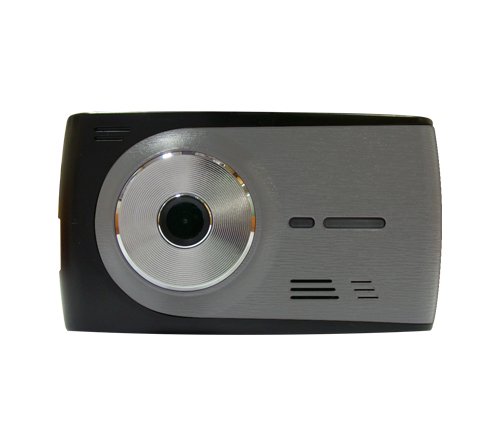

B10FHD: 3.5” LCD Type Full HD Car Blackbox
Full HD Car BlackBox ( 3.5” Full LCD /GPS/G-Sensor / 1+1ch Camera/Audio)
Feature

"B10HD : 1+1CH Full HD & HD (1920X1080p & 1280X720p)
  (Built-In 1CH HD & External HD Camera)"
Built-in 3.5” LCD Screen
External GPS (Option)
Emergency & Continuous Recording
Play Images and Audio Data
Micro SD Memory Card (upto 64GB)
Battery Monitoring
Play HD
Built-in G-Sensor/Microphone/Speaker
Free Voltage: DC 12~24V

  • Specification

    •  DESCRIPTION

      SPECIFICATION

      Main CPU

      High-Performance  Digital Media Processor

      Programmable High-Definition Video Image Co-processing Engine

        - Encode, Decode, Transcode Operations

        - H.264 BP/MP/HP, MPEG-2, VC-1, MPEG-4 SP/ASP, JPEG/MJPEG

      Memory

      NAND flash

      128MB NAND Flash Memory

        - Open NAND Flash Interface 1.0 Compliant

        - Single Level Cell(SLC) Technology

      SDRAM

      256*2(512MB) DDR III RAM

      LCD

      480*800 3.5 TFT LCD (With Touch Panel)

      - LCD Type : 3.5 TFT

      - Display Resolution : 480(RGB*800 Dots (WVGA)

      - Number of Color : 16M Color

      - Interface : 18Bit RGB Vertical Stripe + SPI

      Video

      Front camera

      Full HD(1920x1080) Front Camera

      Image Sensor

        - Image Format : Sony 1/2.9 2M COMS Sensor

        - Effective Resolution : 1984(H) * 1225(V)

        - Frame Rate : 1080p / 30fps

      Lens : Viewing Angle (16:9 HD) : D 136°+-5°, H 110.5°+-5° , V 57°+-5°

      Rear camera

      HD (1280x720) Rear Camera (with Ser-Des)

      Image Sensor

        - Effective Resolution : 1312(H) * 816(V)

        - Frame rate : 720p , 30fps

      Lens  : Viewing Angle : Diagonal 127°+-5°, Horizontal 100° +-5°, Vertical 60.64° +-5°

      Audio

      Mic

      MIC Type : Electret Condenser Microphone

      Speaker

      1W Mylar Speaker

      Interface

      USB

      Mobile Broadband USB dongle interface

        - USB A

        - USB 2.0 Interface (Host)

      OBD interface

        - Micro USB / USB 2.0 Interface (Host)

      Sensor

      G-Sensor

      Sensor : KXCJ9-1008 (Kionix)

      - Zero-g Offset : +-25mg

      Temp Sensor

      Sensor : LM20B (TI)

      - Rated for Full -40 to +70 Range

      GPS

      UART Interface GPS (TBD) / Sirf 4

      Power

      Supply voltage : DC10 ~ 32V

      Operation voltage:  DC12V/ DC24V

      Operating temperature : -10 ~ +60

      Mechanical

      Size : 112mm(W) x 62(H)

      Weight : Main body 121g Cradle 23g

      Compression

      Video

      H.264

      Audio

      G.711
