SC1260FHD/HD
12 IR LED CCD Dome Camera
Feature

1/3" or 1/2.9” Full-HD / HD sensor

1080P  / 720P

0.001 Lux (CDS Sensor on 0.00 Lux)

12 PCs of IR LED (6~10 PCs Optional)

Water Proof & Vandal Proof

Audio : Optional

  • Specification

    • No.DESCRIPTIONSC1261 Full-HDSC1261 Full-HD
      1

      CMOS Device

      1/2.8“ 2.1 Mega Pixel SONY CMOS 1/2.9” PIXELPLUS CMOS (PS4100K_CT)
      2

      Total Pixels

      2000(H) x 1241(V) = 2.48 Mpixel1296 (H) x 736(V) 1.0Mega Pixels
      3

      Active Pixels

      1984(H) x 1225(V) = 2.43 Mpixel1280 X 720P@30fps

      4

      Minimum
      Illumination

      Color: 1.0 lux, BW: 0.5lux,
      Color DSS: 0.002 lux,
       BW DSS: 0.001 lux
       .

      5

      Video Output

      AHD / (Option : TVI / CVI / CVBS)Analog HD: 720P

      6

      S/N Ratio

      More than 50dB (AGC Off)More than 43dB (AGC Off)

      7

       Shutter Speed

      Auto /Manual
      (1/50(60) ~ 1/50000) sec
      AUTO

      8

      Day & Night

      7, 15, 20 m cable Optional AUTO

      9

       Lens

      More Than 42dB 3.6 mm Mega Pixel Fixed Lens

      10

       AGC

      -20 ℃ ~ 60 ℃AUTO

      11

       White Balance

      0.1 Lux AUTO

      12

       SENS UP

      Black/Silver/ White Off/ / x2 ~ x30

      13

       DNR

      Off / Low / Middle / HIGHOff / Low / Middle / HIGH

       14

       IR LED

       Visible Diameter(850nm, 30˚)
      × 12pcs
      Visible Diameter(850nm, 30˚) × 12pcs

      15

      Visibility Range

      10M(Indoor) 10M(Indoor)

       16

       Power Input

       DC 12V ±10% / 1ADC 12V ±10% / 1A

       17

       Power
      Consumption

       DC 12V / 450mADC 12V / 450mA

       18

       Operating
      Temperature

       -10 ~ +50-10 ~ +50
       19

       Operating
      Humidity

       Less than 90%Less than 90%

      20

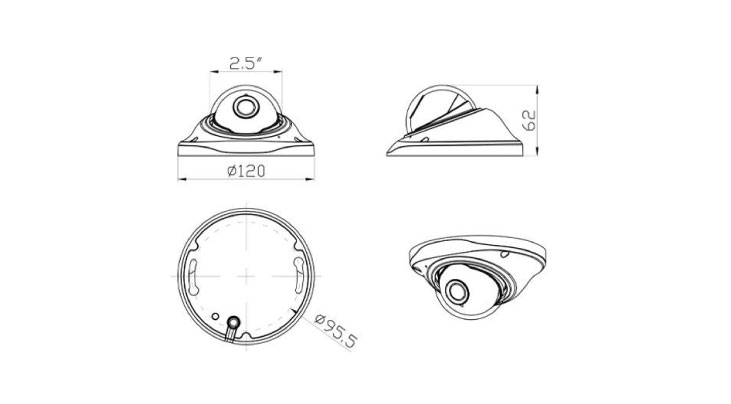

      Dimension

       95.5(Φ) × 62(H) × 120(D)mm95.5(Φ) × 62(H) × 120(D)mm
       21

       Weight

       Approx. 300(g)Approx. 300(g)
